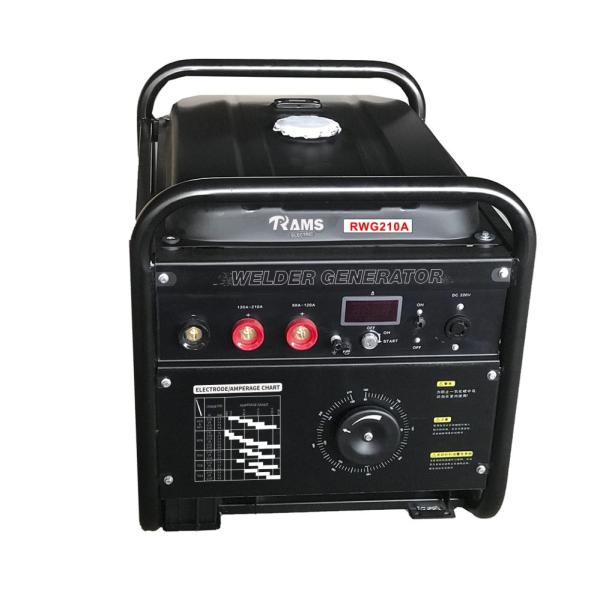

    RWG210AC 210A Electric Arc Welding Generator Petrol 15HP Engine

    Ask Lasest Price
    Brand Name : RAMS
    Model Number : RWG210AC
    Certification : CE
    Payment Terms : T/T, L/C
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    RWG210AC 210A Electric Arc Welding Generator Petrol 15HP Engine

    RWG210AC 210A Arc Medium Frequency Petrol Welding Generators

    MOQ:12units mixed model


    Feature


    • Wide range of application, can be used as a professional oil and gas pipeline construction units, railways, municipal pipe network, chemical plants, power plants, steel plant construction and emergency maintenance.

    • Medium frequency three-phase rectifier, smooth current, good dynamic characteristics, fast response (1-3ms) to meet different welding requirements, and suitable for all kinds of acid, alkaline electrode and argon arc welding operations.

    • Permanent magnet technology, with small size, light weight, small iron loss, high efficiency, efficiency up to 90%.

    • Abandon the IGBT(insulated gate bipolar transistor) with high failure rate and adopt the built-in control mode, which greatly improves the reliability of the control system.

    • Dual output, can meet the requirements of welding and using small power tools.

    • Let our products spread in every corner of the world, let our service warm every user.


    Unit Specification
    DC Welding Current210A
    Non-loading Voltage(V)70-75
    Welding Current Range50-210
    Duty Cycle at rated amps avalible60% @210A
    Welding ProcessSMAW(MMA / GTAW(TIG)
    Welding Rod diameter1.5-4.0mm
    Fuel Tank Capacity25L
    Fuel typeGaosline
    Generator Specification
    Power rated outputDC 1.6kw
    Auxiliary OutputAC 3kw
    Voltage120V/220V/240V
    Receptacles16A/9A/8A
    Dimensions&Weights
    Carton size(mm)720*540*570mm
    Net/Gross Weight(kg)80.5/83kgs
    Engine Specification
    Engine Model190FE
    Start MethodElectric start
    Borex stroke mm92*75
    Horsepower/displacement420cc
    Ignition SystemCDI
    MOQ:12units mixed model
