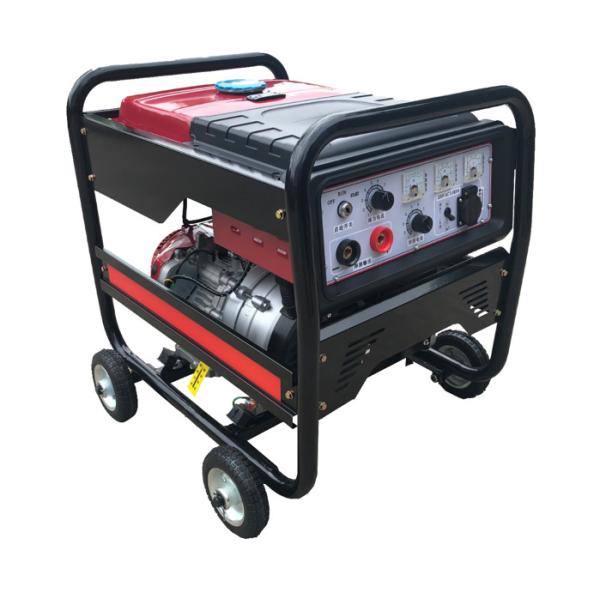

    190F Gas Engine Welder 12.5L Fuel Tank Gas Powered Welding Machine

    Ask Lasest Price
    Brand Name : RAMS
    Model Number : RNG210S
    Certification : CE
    Payment Terms : T/T, L/C
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    190F Gas Engine Welder 12.5L Fuel Tank Gas Powered Welding Machine

    RNG210S Petrol Welding Generators Medium Frequency Permanent Magnet
    MOQ:12units mixed model

    Description


    • Wide range of application, can be used as a professional oil and gas pipeline construction units, railways, municipal pipe network, chemical plants, power plants, steel plant construction and emergency maintenance.
    • Medium frequency three-phase rectifier, smooth current, good dynamic characteristics, fast response (1-3ms). Can meet different welding requirements, and is suitable for all kinds of acid, alkaline electrode and argon arc welding operations.
    • Permanent magnet technology, with small size, light weight, small iron loss, high efficiency, efficiency up to 90%.
    • Abandon the IGBT(insulated gate bipolar transistor) with high failure rate and adopt the built-in control mode, which greatly improves the reliability of the control system.
    • Dual output, can meet the requirements of welding and using small power tools.
    • Removable wheel set, easy to move.
    • The project has been supported by the Innovation Fund of the Ministry of Science and Technology.


    Specifications
    Brand: RAMS
    Manufacturers Part Number: RNG210S
    Unit Specification
    DC Welding Current210A
    Non-loading Voltage(V)70-75
    Welding Current Range60-210
    Duty Cycle at rated amps avalible60% @210A
    Welding ProcessMMA /TIG
    Welding Rod diameter1.5-4.0mm
    Fuel Tank Capacity12.5L
    Fuel typegasoline
    Generator Specification
    Power rated output (single phrase)DC 1.6kw
    Power Max output (single phrase)DC 2kw
    Voltage120V/220V/240V
    Receptacles1ps 16A
    Dimensions&Weights
    Carton size(mm)720*540*570mm
    Net/Gross Weight(kg)83/85.5kgs
    Q'ty 20"/40"/40"H128/256/256
    Engine Specification
    Engine Model190FE Gasoline engine
    Start MethodElectric start
    Borex stroke mm90*66
    Horsepower/displacement420cc
    Ignition SystemCDI
    MOQ:12units mixed model
    Package Includes

    • RNG210S Welder
    • 8" Wheel Kit
