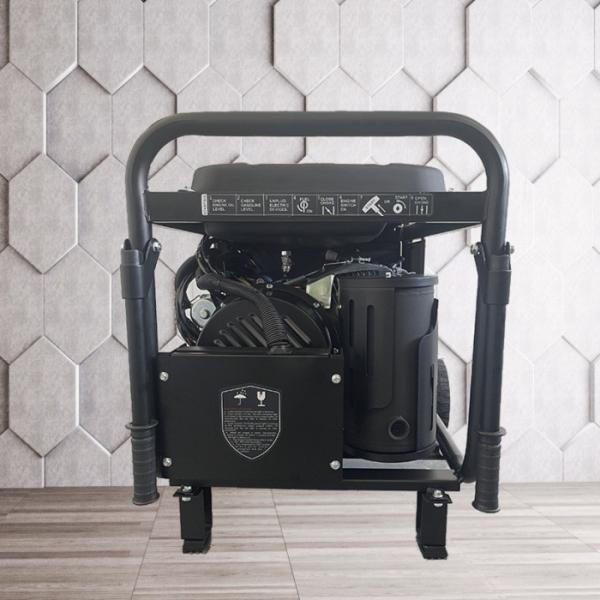

    195FE 250A Arc Engine Driven Welders Petrol AC 3 kW Generator

    Ask Lasest Price
    Brand Name : RAMS
    Model Number : RWG250AC
    Certification : CE
    Payment Terms : T/T, L/C
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    195FE 250A Arc Engine Driven Welders Petrol AC 3 kW Generator

    250A Arc Medium Frequency Petrol Welding Generators

    MOQ:12units mixed model


    Feature


    • Applicability is wide and can be used as a major units of oil and gas pipeline construction, railway, municipal pipeline, chemical plants, power plants, steel mills in construction and emergency maintenance.
    • Using medium frequency three-phase rectifier, current is smooth, good dynamic characteristics, fast response speed (1-3 ms) can satisfy the different welding requirements, and are suitable for all kinds of acidic and alkaline electrode and argon arc welding.
    • By adopting the technology of permanent magnet, has small volume, light weight, small iron loss, high efficiency, efficiency can reach 90%.
    • Abandoned the higher failure rate of IGBT (insulated gate bipolar transistor) adopted invagination type control mode, greatly improve the reliability of the control system.
    • Working condition of dual output, at the same time meet the requirements of welding and the use of small electric tools.
    • Make our products all over the world each corner, let our service warm each user.

    Performance Data WELDER GENERATOR
    Unit Specification
    DC Welding Current 250A
    Non-loading Voltage(V) 70-75
    Welding Current Range 70-250
    Duty Cycle at rated amps avalible 60% @250A
    Welding Process SMAW(MMA / GTAW(TIG)
    Welding Rod diameter 2.0-6.0mm
    Fuel Tank Capacity5.5gal25L
    Fuel type Gasoline
    Generator Specification
    Power rated output (single phrase) DC 1.6kw
    Power Max output (single phrase) AC 3kw
    Voltage 120V/220V/240V
    Receptacles 1ps 16A
    Dimensions&Weights
    Carton size(mm)28.74*20.87*25.2in730*530*640mm
    Net/Gross Weight(kg)250/257.94Ibs113.5/117kgs
    Q'ty 20"/40"/40"H 93/198/264
    Engine Specification
    Engine Model 195FE
    Start Method Electric start
    Borex stroke mm 92*75
    Horsepower/displacement 531cc
    Ignition System Compression Ignition

    MOQ:12units mixed model
